EBAM 88

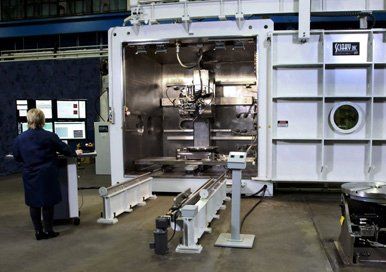

The EBAM® 88 System
Data sheet:
Chamber Dimensions 110” (2794 mm) x 110” (2794 mm) x 110” (2794 mm)
Work Envelope–70” (1778 mm) wide x 47” (1194 mm) deep x 63” (1600 mm) high
Nominal Part Envelope–106” (2692 mm) wide x 47” (1194 mm) deep x 63” (1600 mm) high
High Efficiency Pumping–Chamber Hard Vacuum (1 x 10-4 Torr)
Power Level up to 42 kW–60 kV
Internal Boom Mounted Gun with High Resolution Optics & Servo Gun Tilt Axis
X, Y & Z Servo Axes with Multiple Part Positioner Options
CNC Control–Joint Scanning and Digitizing System
Wirefeed with Motorized Wire Nozzle
Closed-Loop Control (CLC) technology
